Lab 6: Purple America

This lab explores visualizing election data by county and state through color and gradient. The data is logicaly split by election results and by county and state regions. A primary goal of this lab is to naturally organize the data using classes and clear, well-defined programming interfaces.

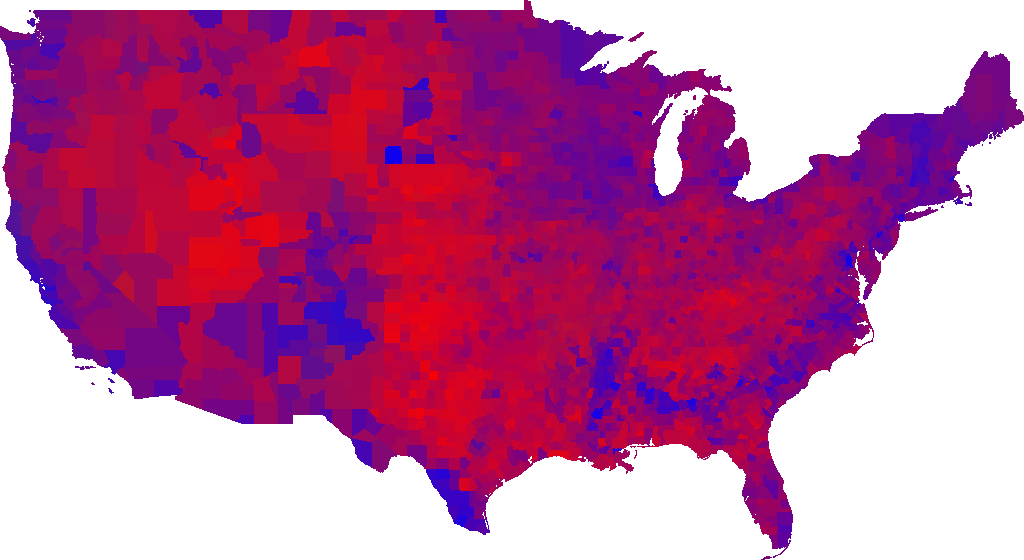

A modern, popular visualization technique for geographic difference is to color counties in the United States according to some statistic. You see it everywhere.

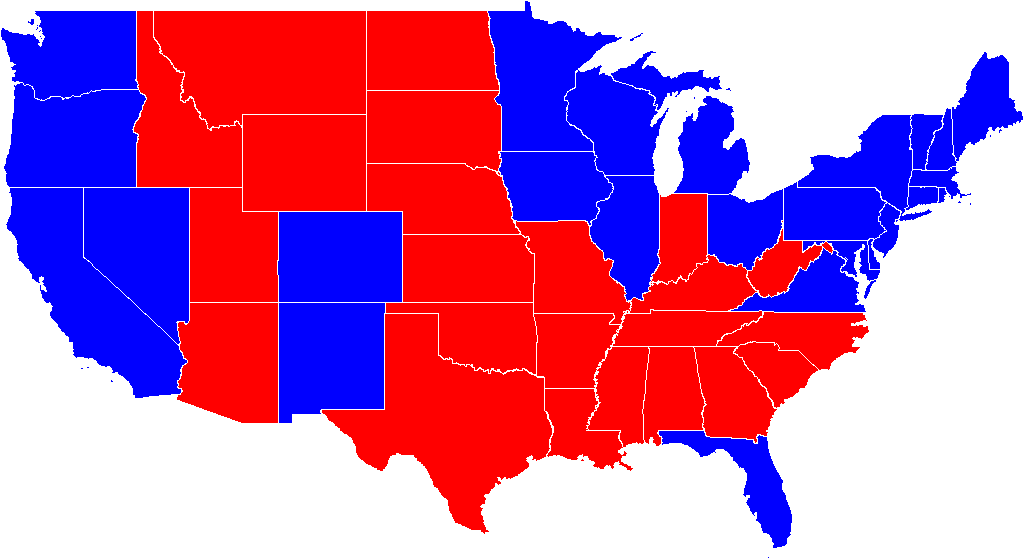

In the last presidential election, we read a lot about red states and blue states. But work by Robert Vanderbei shows that the USA is actually filled with purple states (well, Utah is pretty red and Vermont is pretty blue). We will write code to do these visualizations directly from election data and boundary information in longitudunal and latidunal format.



Step 1: Source Code

• Clone your private repo to an appropriate directory in your home folder (~/labs is a good choice):

  $ git clone https://github.com/williams-cs/<git-username>-lab6.git

  Remember, you can always get the repo address by using the ssh copy-to-clipboard link on github.
• Once inside your <git-username>-lab6 directory, create a virtual environment using

  $ virtualenv -p python3 venv

• Activate your environment by typing:

  $ . venv/bin/activate

• Use pip to install the pillows imaging library:

  $ pip install pillow

• Remember that you must always activate your virtual environment when opening a new terminal
• Type

  $ git branch

  and notice that you are currently editing the master branch.
• Create a new branch with

  $ git branch purple

• Checkout this branch by typing

  $ git checkout purple

• Any changes you make to the repository are now isolated on this branch.

Step 2: Data

There are two types of data.

• County and State Boundaries; and
• Election Results

Boundary Data

The boundary data is in CSV format. It has the the form

      COUNTY,STATE,LONG1,LAT1,LONG2,LAT2,...,LONGN,LATN

where each successive pair of LONG,LAT values form a point on the polygon defining a particular region (you should think of longitude as x and latitude as y). Some county/state pairs appear multiple times because they contain separate regions (imagine a county comprised of a series of islands). There are three types of boundary files:

• State / County Boundaries: XX.csv where XX is a two-state abbreviation.
• State / County Boundaries for the continental US: US.csv — this is essentially a concatenation of all the state files.
• State Boundaries for the continental US: US-states.csv — this file has the form STATE,USA,LONG1,LAT1,....

Election Data

The election data is in CSV format. It has the form

    COUNTY,STATE,REPUBLICAN_VOTES,DEMOCRATIC_VOTES,OTHER_VOTES

where COUNTY,STATE matches an appropriate boundary line in a file from above. In fact, if a county / state pair has several boundaries, then the vote counts are repeated. So if bnd is a CSV reader for a boundary file and elc is a CSV reader for an election results file, one can write

      for (co,st,r,d,o), boundary in zip(elc,bnd):

and be assured that the boundary corresponds to the results. In other words, that co == boundary[0] and st == boundary[1].

Naturally, there are three types of election results files:

• State / County results by year: XXYYY.csv where XX is a two-state abbreviation and YYYY is a year.
• State / County results for the continental US by year: USYYYY.csv.
• State results for the continental US by year: US-statesYYYY.csv

Your program will take as input, two files—one boundary and one election—that are suitably matched. The data is available from a github repository. To access it, clone the repo into your lab 6 directory, but don't add the files to your lab 6 repo:

      git clone https://github.com/williams-cs/election-data.git


Step 3: Design

Your program should be split between three separate files: region.py, plot.py, and election.py. The region.py and plot.py files will hold Region and Plot classes respectively. The election.py script will parse and create instances of Region for each line of the input data and then use an instance of the Plot class to create the visualization.

Step 4: Region

The Region class represents a region (stored as a list of long / lat pairs) and its vote counts. It provides methods to find both the minimum and maximum longitudunal and latitudunal values for the region. These values are used by the Plot class to interpolate the region properly into the image. This class also can determine plurality and voting percentages by party for the region.

Here is the class skeleton. All the methods require definitions except for the initialization routine, which is complete. You should use the lats and longs methods in your min_lat, max_lat, min_long, and max_long methods respectively.

    class Region:
        """
        A region (represented by a list of long/lat coordinates) along with
        republican, democrat, and other vote counts.
        """

        def __init__(self, coords, r_votes, d_votes, o_votes):
            self.coords = coords
            self.r_votes = r_votes
            self.d_votes = d_votes
            self.o_votes = o_votes

        def longs(self):
            "Return a list of the longitudes of all the coordinates in the region"

        def lats(self):
            "Return a list of the latitudes of all the coordinates in the region"

        def min_long(self):
            "Return the minimum longitude of the region"

        def max_long(self):
            "Return the maximum longitude of the region"

        def min_lat(self):
            "Return the minimum latitude of the region"

        def max_lat(self):
            "Return the maximum latitude of the region"

        def plurality(self):
            """return 'REPUBLICAN','DEMOCRAT', or 'OTHER'
                depending on plurality of votes"""

        def total_votes(self):
            "The total number of votes cast in this region"

        def republican_percentage(self):
            "The precentage of republication votes cast in this region"

        def democrat_percentage(self):
            "The precentage of democrat votes cast in this region"

        def other_percentage(self):
            "The precentage of other votes cast in this region"


Make sure to test this class out in the Python REPL before proceeding. You can do this by typing

    >>> import region
    >>> r = region.Region([(1,1),(2,2),(4,2),(3,5)], 100, 200, 300)
    >>> r.plurality()
    'OTHER'
    >>> r.r_votes
    100
    >>> r.republican_percentage()
    0.16666666666666666
    >>> r.min_long()
    1
    >>> r.max_lat()
    5


Step 5: Plot

The Plot class encapsulates an image proportional in size to a bounding box around a set of regions given in longitudunal and longitudunal coordinates. It also provides the ability to draw regions, appropriately filled, on the image. Besides initialization, it contains two instance methods (draw and save) and five static methods, which appear first in the class definition. The static methods are not instance methods because they don't rely on the current state of the instance, nor do they change any state of the instance—they are logically related to Plot, which is why they live in the Plot namespace.

    from PIL import Image, ImageDraw
    from PIL.ImageColor import getrgb


    class Plot:

        """
        Provides the ability to map, draw and color regions in a long/lat
        bounding box onto a proportionally scaled image.
        """

        @staticmethod
        def interpolate(x_1, x_2, x_3, newlength):
            """linearly interpolates x_2 <= x_1 <= x3 into the range [0, newlength]"""

        @staticmethod
        def proportional_height(new_width, width, height):
            """return a height for new_width that is
               proportional to height with respect to width"""

        @staticmethod
        def fill(region, style):
            """return the fill color for region according to the given 'style'"""
            if style == "GRAD":
                return Plot.gradient(region)
            else:
                return Plot.solid(region)

        @staticmethod
        def solid(region):
            "return an appropriate solid color based on plurarlity of votes"

        @staticmethod
        def gradient(region):
            "return a gradient color based on percentages of votes"

        def __init__(self, width, min_long, min_lat, max_long, max_lat):
            """
            Create a width x height image where height is proportional to width
            with respect to the long/lat coordinates."""

        def save(self, filename):
            """save the current image to 'filename'"""

        def draw(self, region, style):
            """
            Draw 'region' in the given 'style' at the correct position on the
            current image"""


    from PIL import Image, ImageDraw, ImageFont

    def create_image(width, height):
        return Image.new("RGB", (width, height), (255, 255, 255))

    def draw_point(image, x, y, color):
        ImageDraw.Draw(image).point((x,y), color)

    def draw_rect(image, xy, fill=None, outline=None):
        ImageDraw.Draw(image).rectangle(xy, fill, outline)

    def save_image(image, filename):
        image.save(filename, "PNG")



Here are some implementation notes:

• The __init__(self, width, ...) method should create an image of width width and height proportional to dimensions given by the longitudunal / latidunal coodinates passed as arguments. Use the proportional_height class method to compute the height.
• The __init__ method should also create instance variables for all longitudunal and latidunal values passed as arguments. You'll need these to properly interpolate regions in your draw method.
• Use the interpolate function to map coordinates in a Region onto pixels in the image instance variable.
• The solid method can use the getrgb function imported from PIL to get RGB values for a given color string. In other words getrgb("RED") will return the tuple (255,0,0).

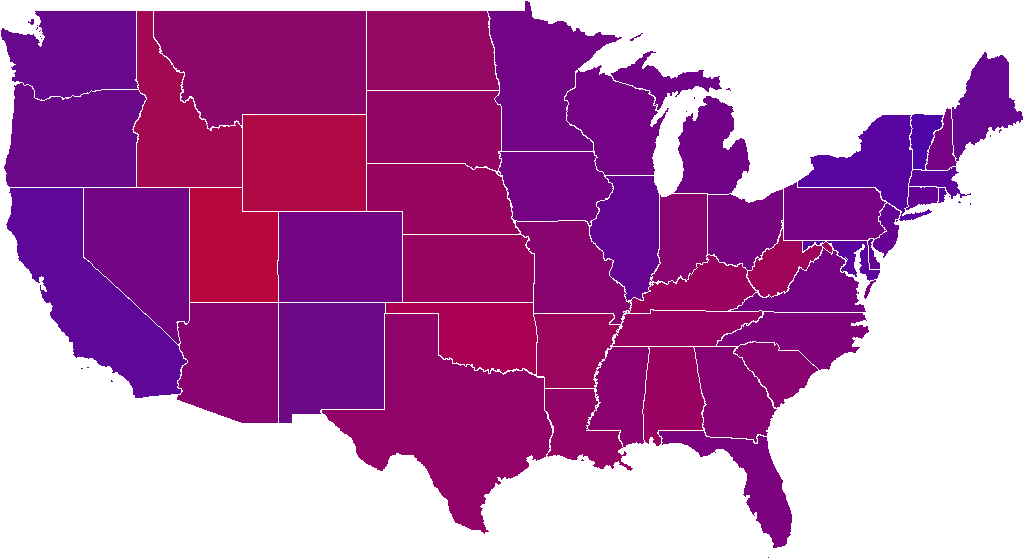

• The color returned by gradient should have a red value proportional to the percentage of Republicaon votes cast in the region, a blue value proportional to the percentage of Democrat votes cast in the region, and a green value proportional to the percentage of other votes cast in the region. Use the appropriate methods of Region to help compute this color
• The draw method should first create a list of properly interpolated image coordinates from the given region argument. You might define local functions trans_long and trans_lat that respectively interpolate longitudunal and latidunal values into image coordinates, and a list comprehension to be helpful. Note that the latidunal values run bottom-to-top but the image y-values run top-to-bottom so trans_lat should subtract the interpolated latidunal value from the image height lest you want an upside-down purple america.

Make sure to test your code:

    >>> import region
    >>> import plot
    >>> r = region.Region([(1,1),(2,2),(4,2),(3,5)], 100, 200, 300)
    >>> p = plot.Plot(100,0,0,8,10)
    >>> p.draw(r,"GRAD")
    >>> p.save("example.png")


Step 6: The election.py script

The election.py script parses the input data into Region instances and uses a Plot instance to draw the regions onto an image. Here is the code skeleton.

    import sys
    import csv
    import math
    from region import Region
    from plot import Plot

    def mercator(lat):
        """project latitude 'lat' according to Mercator"""
        lat_rad = (lat * math.pi) / 180
        projection = math.log(math.tan((math.pi / 4) + (lat_rad / 2)))
        return (180 * projection) / math.pi

    def main(results, boundaries, output, width, style):


    if __name__ == '__main__':
        results = sys.argv[1]
        boundaries = sys.argv[2]
        output = sys.argv[3]
        width = int(sys.argv[4])
        style = sys.argv[5]
        main(results, boundaries, output, width, style)



The main function takes five arguments:

• results: the name of an election results file;
• boundaries: the name of a matching boundary file;
• output: the name of a file to output the visualization image;
• width: the width of the output image; and
• width: a string indicating how the fill style of the regions (i.e., either "GRAD" or "SOLID")

Some implementation notes:

• The election.py file contains a function called mercator, which can be used to project latitudunal coordinates from a sphere onto a cylinder. You will probably want to do this transformation immediately when reading in the coordinates. As an exercise, try not doing it and looking at the result.
• You should iterate throught the results and boundaries files in unison. Consider using a list comprehension to create a list of Region objects, one per line. In other words, don't worry about streaming the data, but rather, creating a Region for each row and gathering them together in a list.
• You might consider defining a local function called to_point that transforms a list of long / lat coordinates into a list of pairs of coordinates, where the lat coordinate is suitably projected.
• Once you have a list of regions, it is easy enough to use list comprehensions along with the functions min and max to determine the bounding box of the regions.

In summary, you're main function should do the following:

• concurrently read lines from the boundary and election data; and
• create a list of regions;
• extract the minimum and maximum longitude and latitude from all the regions (think about finding the min amongst all minimimums and the max amongst all maximums);
• create a plot object with these values;
• iterate through the regions and draw each region using your Plot instance; and finally
• save your image.

To run your code from the command line use

    $ python3 election.py election-data/results/US2012.csv election-data/boundaries/US.csv output.png 1024 GRAD


Step 8: Optional Extensions

• Instead of using the formula above for creating purple colors, use a set of 5 colors or 7 colors, similar to this map. For example, you could use deep red to indicate elections where Republicans won by a big percentage, you could use pink to indicate elections where Republicans won by a small percentage, you could use grey to indicate incredibly close elections, light blue for small Democratic victories, and deep blue for large Democratic victories.
• Many geographically large counties have small populations, whereas many geographically small counties have relatively large populations. Can you come up with a color scheme that helps highlight this while also showing the election results?
• You can draw a map showing the net change in votes from one election to the next.
• You can go find other data online and show that instead of election results. For example, you maybe you could find average rainfall, altitude, poverty rates, obesity rates, linguistic variations (e.g. "soda" vs "pop" vs "coke") or anything else you'd like.

Step 7: Submission

• Now commit those additions to the repository:

  $ git commit -a -m "some appropriate log message"

• Push your changes back to github repo:

  $ git push

  You will probably be asked to type $ git push --set-upstream origin purple which you should do. This pushes your purple branch back up to the GitHub Repo.
• Now navigate to your GitHub repo using a web browser. You should see a list of recently pushed branches with links to compare and pull request. Go ahead and issue a PR

Credit

Thanks to Kevin Wayne for his Nifty Assignment.

Thanks to Rich Wicentowski for the nicely formatted data and the optional extension ideas.
